ZLAN7144N

Industrial P2P wireless serial port server

  • Connect RS232/RS485 serial devices to wifi
  • can be used as AP or Station mode
  • Support Modbus TCP to RTU, suitable for PLC wireless monitoring
  • Configure parameters through web pages and ZLVircom
  • Support for virtual serial port communication

Contact

Download
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN7144N is also a high-performance WIF serial port server, and it is the same as ZLAN7104, Ethernet and WlFI can be used at the same time, and the configuration is convenient. High stability, rich functions, suitable for real-time, high stability of the industrial field, especially suitable for PLC and other equipment wireless remote monitoring. The serial port server can easily connect the serial port device to the WIFl wireless network and realize the wireless network upgrade of the serial port device. RS232 interface supports full-duplex, uninterrupted communication; R5485 Built-in 485 lightning protection This device contains all the functions of ZLAN7104, the highlight of this model is peer-to-peer communication P2P, mainly for no public IP or peanut shell Intranet version to do domain name resolution applications. This one only needs to directly add the device ID number can communicate, the software will get all the network through, communication is very convenient.

Features

  • 1. Support simultaneous Ethernet and Wifi access.
  • 2. Wide voltage supply: 9 ~ 48V power supply range.
  • 3. Supports RS232, RS485, and RS422 serial ports.
  • 4. It can be used as AP mode or station mode.
  • 5. Support heartbeat packets and custom registration packets.
  • 6. Serial port parameters can be set arbitrarily, supporting remote configuration parameters one-click search configuration.
  • 7. Automatic reconnection after disconnection.
  • 8. Reset, lightning protection, fast start speed.
  • 9. Support multiple communication modes.
  • 10. Provide device management libraries.

Technical Parameters

Communication interface

  • wifi
  • 802.11 b/g/n
  • Serial port
  • RS232/485/422×1: RXD, TXD, GND, CTS, RTS

Serial port parameter

  • Baud rate
  • 1200~460800bps
  • Check bit
  • None, odd check, even check, mark, space
  • Data bit
  • 5 ~ 9
  • Flow control
  • RTS/CTS, XON/XOFF, NONE

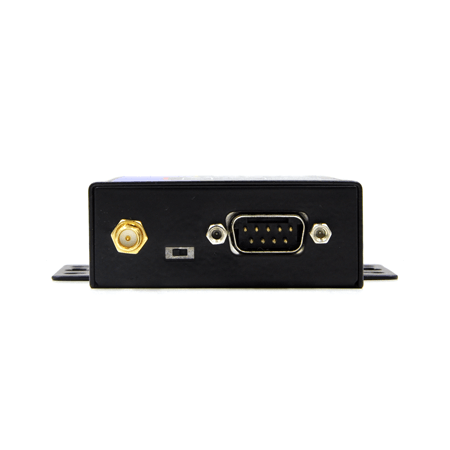

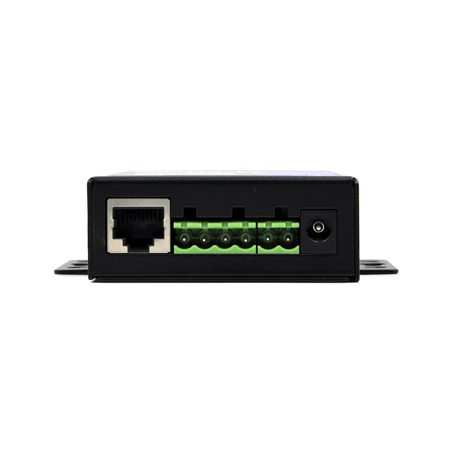

Appearance

  • Interface
  • 485: terminal; 232: DB9; 422: Terminal
  • Power supply
  • Inside positive outside negative, standard power socket; Two-wire terminal mode
  • Size
  • Length × width × height =9.4cm×6.5cm×2.5cm

Wireless

  • Wireless standard
  • 802.11b /g
  • Frequency range
  • 2.412 GHz to 2.484 GHz
  • Transmit power
  • 802.11b: +20dBm(Max.); 802.11g: +18dBm(Max.)
  • Receiving sensitivity
  • 802.11b: -89dBm; 802.11g: -81dBm
  • Antenna selection
  • External: External antenna

Software feature

  • Wireless working mode
  • STA/AP
  • Security mechanism
  • WEP/WPA-PSK/WPA2-PSK
  • Encryption type
  • WEP64/WEP128/TKIP/AES
  • Network protocol
  • TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
  • Communication mode
  • Socket, virtual serial port
  • User Configuration
  • Web server, Windows configuration tool zlvircom

Hardware

  • Power supply
  • 9~48V
  • Working temperature, humidity
  • -40~85℃, 5 ~ 95% RH
  • Storage temperature, humidity
  • -45~125℃, 5~ 95% RH
