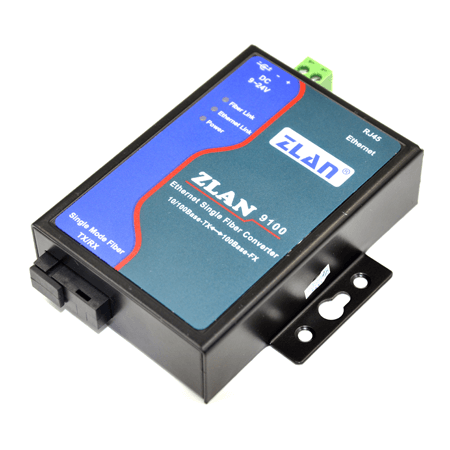

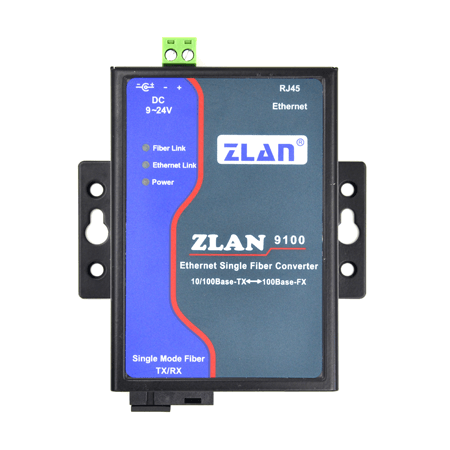

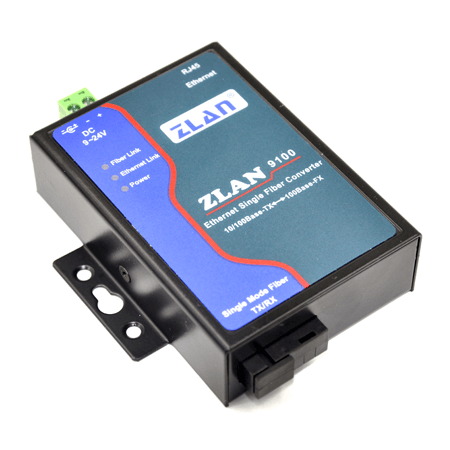

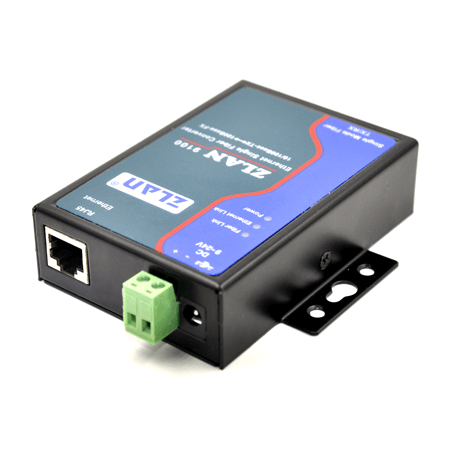

ZLAN9100 optical transceiver is a photoelectric conversion device that converts 10M/100M Ethernet electrical signals into optical signals or optical signals into 10M/100M Ethernet signals. By converting electrical signals into optical signals in single-mode optical fiber transmission, it breaks the limitation of short cable distance, making Ethernet in the premise of ensuring high bandwidth transmission. The use of optical fiber media to achieve long-distance transmission of several kilometers to hundreds of kilometers.

ZLAN9100 has two special advantages:
1. It is designed for industrial applications. The power supply can be a plug or two wire terminal, and the input voltage is wide. The wide voltage input can be 9 ~ 24V.
2. Use single-mode single-fiber optical fibers. This can save the cost of optical fiber over long distances compared to dual-fiber converters.

ZLAN9100 can be used in: a variety of applications that need to extend the distance of industrial Ethernet transmission through optical fibers; It also applies to places where Ethernet devices and optical switches need to be connected.

* Note: The ZLAN9100 is divided into two sub-models: ZLAN9100-3 (A terminal) and ZLAN9100-5 (B terminal), which must be used in pairs. That is: A terminal machine to B terminal machine; B end machine is connected to A end machine; The same port cannot be connected. When connecting the ZLAN9100 to an optical switch, ask whether the optical port of the optical switch is end A or end B. If end A is used, select ZLAN9100-5; otherwise, select ZLAN9100-3.
