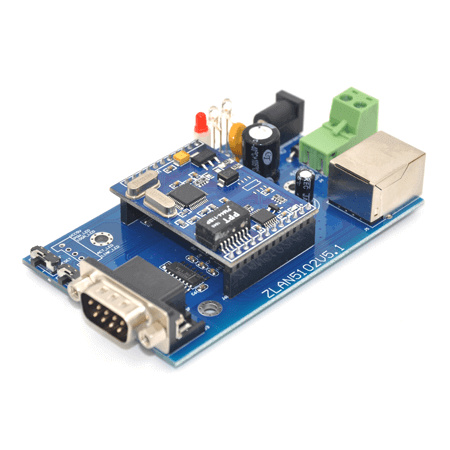

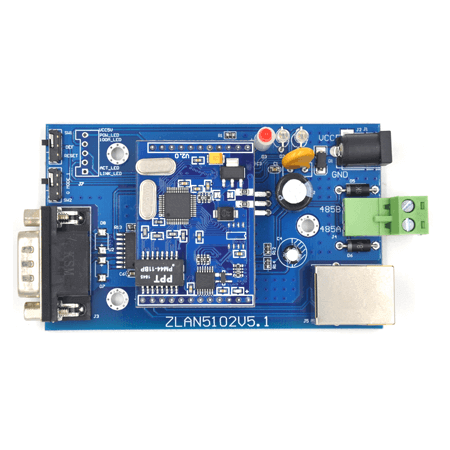

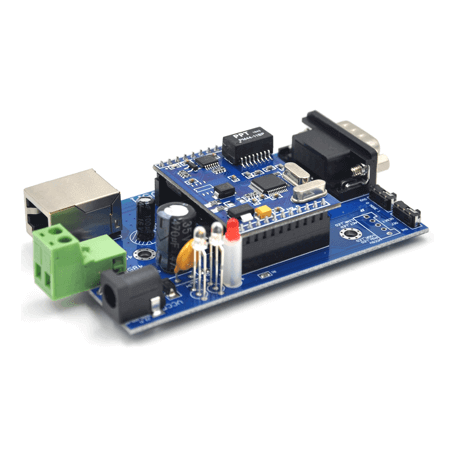

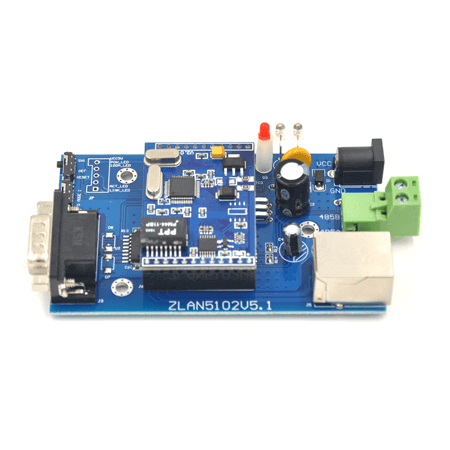

RS232/485 networking module

ZLSN5102

RS232/485 networking module

  • RS-232/485 serial port device can be connected to Ethernet
  • Industry's first full-duplex, uninterrupted, low-cost server
  • Support TCP server, TCP client, UDP mode
  • Support for virtual serial port, Web login, or configuration using VirCom

Contact us

Download
  • Product introduction
  • Specification parameter
  • Product information

summarize

ZLSN5102 Serial port to Ethernet module is a protocol converter between RS232/485 and TCP/IP developed by Shanghai ZLAN Information Technology Co., LTD. The serial to Ethernet module can connect the serial device to the Ethernet and Internet conveniently, and realize the network management of the serial device. Its peculiarity compared to its peers is its stability (it can send large amounts of data in full duplex without losing a single byte) and its moderate price.

peculiarity

  • ZLSN5102 embedded Web server can configure its network parameters, serial port parameters, login password and so on.
  • The Web server supports password login to prevent random modification.
  • Cross-gateway support: The serial port server can be connected to any host with a public IP address on the Internet.
  • Support 1200 to 460800 baud rate.
  • Support 9-bit data transmission function: the 9th bit can be none, odd check, even check, 1, 0, five ways to facilitate the differentiation of data frame and address frame in 485 communication.
  • ZLVirCom Configuration tool automatically finds NETCOM device networking servers on the network.
  • Supports virtual serial ports.
  • Supports data write protection to prevent arbitrary tampering.
  • Supports default configuration boot.
  • LINK indicator connection.
  • Hardware flow control CTS/RTS.
  • 1KV network surge protection.

Product specification

Network interface

  • Ethernet
  • 10/100 Mbps, RJ45
  • Protection
  • Built-in 2KV electromagnetic isolation

Serial interface

  • Interface
  • RS-232/485
  • Number of serial ports
  • 1
  • Check bit
  • None, Even, Odd, Space, Mark
  • Data bit
  • 5 ~ 9
  • Stop bit
  • 1, 2,
  • Flow control
  • RTS/CTS,DTR/DCR,XON/XOFF
  • Rate
  • 1200bps ~ 460800bps

Software feature

  • Protocol
  • TCP,HTTP,UDP,ICMP,ARP,IP,DNS,DHCP
  • Virtual Serial Port
  • Windows 98/2000/XP/WIN7/WIN8
  • Configuration mode
  • Web browser, ZLVirCom, serial port class AT command

Electrical characteristics

  • Voltage input
  • DC9 ~ 24V, 100mA

Mechanical characteristics

  • Size
  • Length × width × height =9.4cm×6.5cm×2.5cm

Working environment

  • Working temperature, humidity
  • -45 ~ 85℃, 5 ~ 95% RH
  • Storage temperature, humidity
  • -45 ~ 165℃, 5 ~ 95% RH

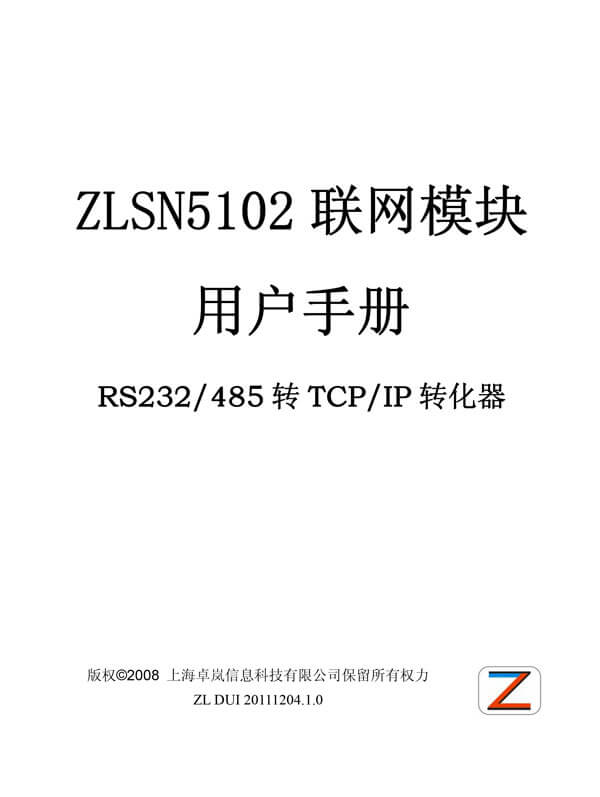

Document Download
